EZLED COMBI ECO IEC

  • EZLED COMBI ECO IEC
ezLed

Create easy and comfortable products.
Sunil elecom LED lighting brand ezled

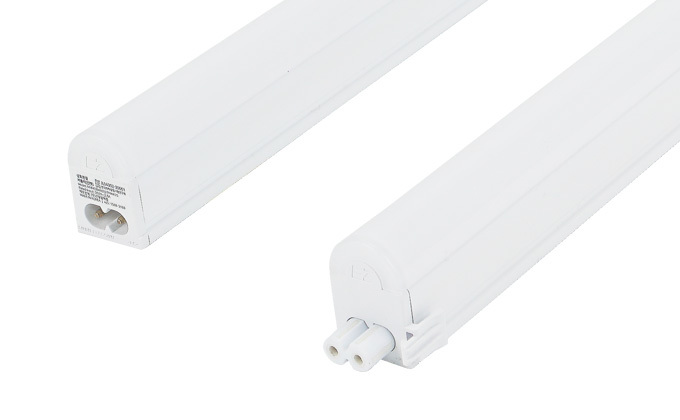

Converter & connector integrated structure

Anti-glare PC cover
Dot-free with no dark-zone
Internal SMPS installed(no need seperate SMPS)

Maximum 50,000hours of Lifespan

5 times longer lifespan than Flourescent light
Botherless product in change for long lifespan

Dot-free with No Dark-zone

High Luminous efficiency
Direct Connection prevents dark-zone

Free choice of Color Temperature

Bright environment of 5700K
Soft & Delicate environment of 4000K
Warm environment of 3000K

SOFT WHITE
DAYLIGHT
COOL DAYLIGHT

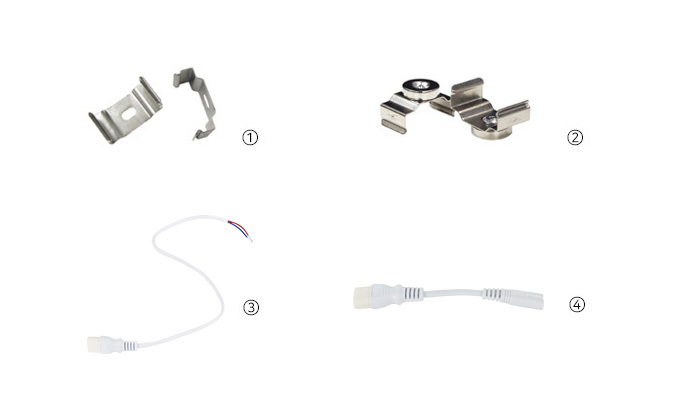

Accessories

①Fixing clip
②Magnetic clip : Option
③Power line : 500mm/ 1,000mm
④Connecting line : 300mm/500mm/1,000mm

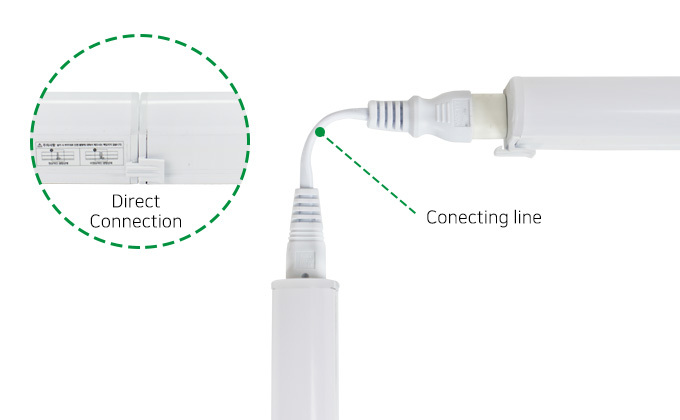

Angle can be deformed due to free connection,
Lock fastening structure in case of direct connection

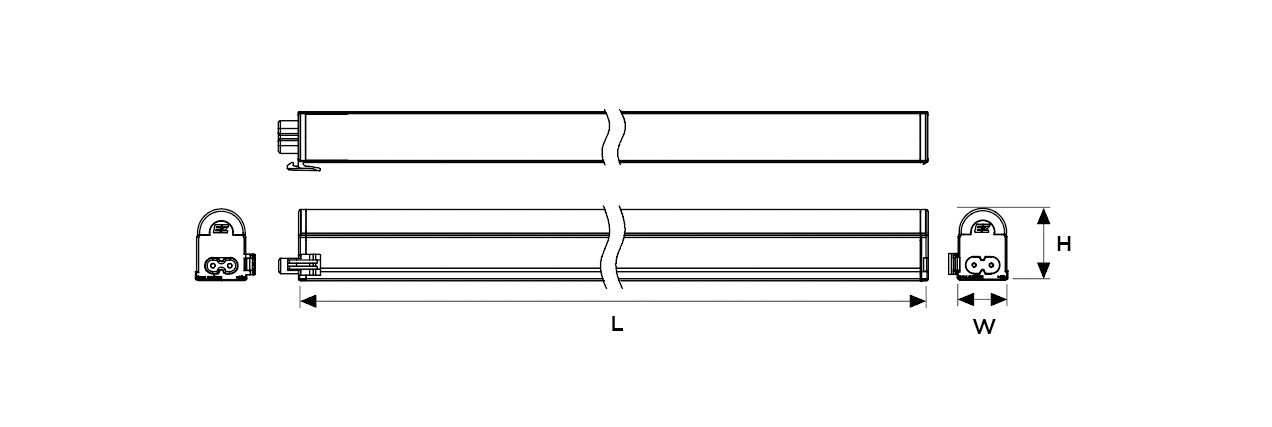

Dimension

*우측으로 스크롤하세요.

Type L (mm) W (mm) H (mm) Weight (g)
300 series 303 25.8 36 104
600 series 603 25.8 36 164
900 series 903 25.8 36 224
1200 series 1203 25.8 36 288

Specification

*우측으로 스크롤하세요.

Model Code Wattage
(W)		 Lumen
(lm)		 Efficiency
(lm/W)		 CCT
(K)		 CRI
(Ra)		 Certification

300 series (5W)

 2CB030053ACD07E0 5 Over 500 Over 100 3000 Over 80 KS, High Efficiency
2CB030054ACD07E0 5 Over 500 Over 100 4000 Over 80 KS, High Efficiency
2CB03005CACD07E0 5 Over 525 Over 105 5700 Over 80 KS, High Efficiency
600 series (9W) 2CB060093ACD07E0 9 Over 420 Over 105 3000 Over 80 KS, High Efficiency
2CB060094ACD07E0 9 Over 455 Over 110 4000 Over 80 KS, High Efficiency
2CB06009CACD07E0 9 Over 490 Over 105 5700 Over 80 KS, High Efficiency
900 series (13W) 2CB090133ACD07E0 13 Over 600 Over 110 3000 Over 80 KS, High Efficiency
2CB090134ACD07E0 13 Over 650 Over 115 4000 Over 80 KS, High Efficiency
2CB09013CACD07E0 13 Over 700 Over 115 5700 Over 80 KS, High Efficiency
1200 series (18W) 2CB120183ACD07E0 18 Over 980 Over 110 3000 Over 80 KS, High Efficiency
2CB120184ACD07E0 18 Over 1050 Over 115 4000 Over 80 KS, High Efficiency
2CB12018CACD07E0 18 Over 1120 Over 110 5700 Over 80 KS, High Efficiency
